| Model | Unit |
XC-LF1A |
XC-LF2A |
XC-LF3A |
XC-LF5A |
XC-LF6A |
XC-LF8A |
XC-LF10A |
|
| Cooling Capacity | KW | 2.77 | 5.28 | 7.91 | 14.5 | 17.5 | 27 | 35 | |
| Kcal/h | 2382 | 4541 | 6803 | 12759 | 15054 | 23220 | 30100 | ||
| Compressor | Input Power | KW | 0.75 | 1.5 | 2.2 | 3.75 | 4.5 | 6 |
3.75x2 |
| Rated Power | HP | 1 | 2 | 3 | 5 | 6 | 8 | 10 | |
|
Power |
1PH-220V/50HZ | 3PH-380V/50HZ(200V/220V/415V 50HZ/60HZ) | |||||||

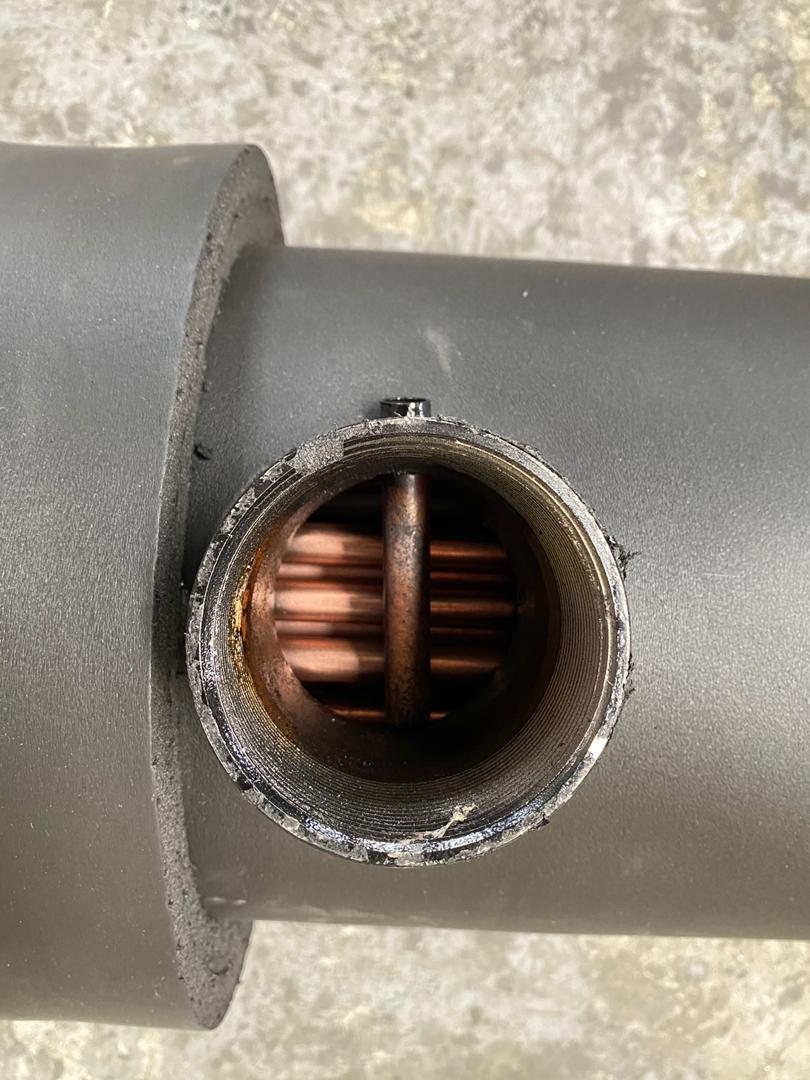

| Evaporator | Type | Water tank coil type | Shell and tube | ||||||
| Pipe Diameter | inch | 1'' | 1'' | 1'' | 1'' | 1'' | 2'' | 2'' | |
| Refrigerant | Type | R22 | |||||||
| Quantity | KG | 1.6 | 1.8 | 2 | 2 | 2.5 | 4 | 5 | |
|
Condenser (water chiller) |
Type | Shell and tube condenser | |||||||
| Pipe Diameter | inch | 1'' | 1'' | 1'' | 1.5' | 1.5'' | |||
| Cooling Water Flow | m³/h | 0.476 | 0.908 | 1.36 | 2.22 | 2.6 | 3.95 | 4.42 | |
|
Condenser (air chiller) |
Type | High efficiency copper tube sleeve aluminum fin type + low noise outer rotor fan | |||||||
| Fan Power | KW | 90x1 | 170x1 | 180x1 | 180x2 | 180x2 | 420x2 | 420x2 | |
| Water Tank Capacity | Liter | 20 | 25 | 40 | 45 | 45 | 80 | 80 | |
| Pump | Power | KW | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 |
| HP | 0.5 | 0.5 | 0.5 | 1 | 1 | 2 | 2 | ||
| Distance | m | 23 | 23 | 23 | 35 | 35 | 15 | 15 | |
| Flow Rate | L/min | 100 | 100 | 100 | 110 | 110 |
360 |
360 | |
| Safety Protection | Compressor overheat protection, overcurrent protection, high and low pressure protection, over temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection | ||||||||
| Dimensions | mm | 800*490*865 | 800*565*1025 | 960*630*1025 | 1280*680*1225 | 1280*680*1225 | 1550*850*1508 | 1550*850*1508 | |
| Model | Unit |
XC-LF12A |
XC-LF15A |
XC-LF20A |
XC-LF25A |
XC-LF30A |
XC-LF40A |
XC-LF50A |
|
| Cooling Capacity | KW | 39 | 51.7 | 71.9 | 81.4 | 108.5 | 144 | 160 | |
| Kcal/h | 44505 | 45422 | 61902 | 70021 | 93361 | 123805 | 138621 | ||
| Compressor | Input Power | KW | 4.5x2 | 3.75x3 | 7.5x2 | 9x2 | 7.5x3 | 7.5x4 |
9.4x4 |
| Rated Power | HP | 12 | 15 | 20 | 25 | 30 | 40 | 50 | |
|
Power |
3PH-380V/50HZ(200V/220V/415V 50HZ/60HZ) | ||||||||
| Evaporator | Type | Shell and tube | |||||||
| Pipe Diameter | inch | 2'' | 2.5'' | 2.5'' | 3'' | 3'' | 4'' | 4'' | |
| Refrigerant | Type | R22 | |||||||
| Quantity | KG | 5 | 7.5 | 11 | 11 | 12 | 18 | 18 | |
|
Condensor (water chiller) |
Type | Shell and tube condenser | |||||||
| Pipe Diameter | inch | 1.5'' | 2'' | 2'' | 2.5'' | 2.5'' | 3'' | 3'' | |
| Cooling water flow | m³/h | 5.03 | 7.1 | 8.84 | 10.06 | 13.6 | 17.76 | 21.9 | |
|
Condenser (air chiller) |
Type | High efficiency copper tube sleeve aluminum fin type + low noise outer rotor fan | |||||||
| Fan Power | KW | 420x2 | 800x2 | 420x3 | 800x3 | 800x3 | 420x6 | 800x6 | |
| Water Tank Capacity | Liter | 80 | 100 | 150 | 210 | 210 | 380 | 400 | |
| Pump | Power | KW | 1.5 | 2.2 | 2.2 | 4 | 4 | 5.5 | 7.5 |
| HP | 2 | 3 | 3 | 5 | 5 | 7.5 | 10 | ||
| Distance | m | 15 | 16 | 16 | 16 | 16 | 16 | 18 | |
| Flow | L/min | 360 | 360 | 360 | 700 | 700 |
700 |
800 | |
| Safety Protection | Compressor overheat protection, overcurrent protection, high and low pressure protection, over temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection | ||||||||
| Dimensions | mm | 1500*850*1508 | 1850*1000*1600 | 2150*1000*1780 | 2400*1150*1800 | 2600*1150*1930 | 2300*2000*1800 | 2800*2100*196 | |
